Bobbin Sizes Explained: Class 15 vs 66 vs L vs M (Why the Wrong Bobbin Wrecks Your Stitches)

Here's a support call we get weekly: a customer buys a tube of bobbins from a big-box store, winds one, and suddenly a machine that sewed perfectly for years is birdnesting, clunking, or throwing tension fits. The bobbins look identical to the old ones. They're half a millimeter off. Bobbins are precision parts, not generic spools — and this guide sorts out the four sizes that cover nearly every machine.

The Four Sizes That Matter

The Class 15 vs 66 trap is the classic: same diameter, but 66 has curved sides. A 66 in a Class 15 case (or vice versa) will mostly work — which is worse than not working, because it sews until it randomly nests. If stitches are fine for a while and then collapse into a thread wad, check the bobbin class before anything else, then work through our thread bunching guide.

How to Identify Yours (60 Seconds)

1. Check the manual. Lost it? Here's how to find it for any brand.
2. Measure a factory bobbin — the one that shipped with the machine is always correct. Diameter and height in millimeters against the table above.
3. Look at the sides: perfectly flat = likely Class 15; visibly curved = 66; short = L; noticeably large = M.

Material Matters Too: Plastic vs Metal

Machines are tuned for a bobbin weight. Front-loading machines with metal cases usually want metal bobbins — like the Singer steel rotary bobbins ($9.99/10-pack) for older rotary Singers. Drop-in top-loading machines almost always want plastic; a heavy metal bobbin in a drop-in case can overrun and backlash when you stop sewing. Rule: match whatever the factory shipped, in class and material.

The Bobbin Case Is Half the System

The bobbin rides in a case that sets bobbin thread tension. Two things every owner should know:

• Embroidery machines often use a second, dedicated case. Brother/Baby Lock's "purple dot" case ($28.95) is factory-set looser for thin embroidery bobbin thread — swap back to the standard case for regular sewing. Mixing them up is a top-three cause of "my embroidery suddenly looks terrible" (more in our embroidery puckering guide).
• Cases wear out. Burrs and a tired tension spring cause erratic stitches — here's how to diagnose a bad case, and what a case actually does. We stock OEM replacements — like the Singer Class 15 case ($13.95) and Brother/Baby Lock XC7206001 ($29.99) — in our parts collection.

Longarm Owners: M-Class Is Its Own World

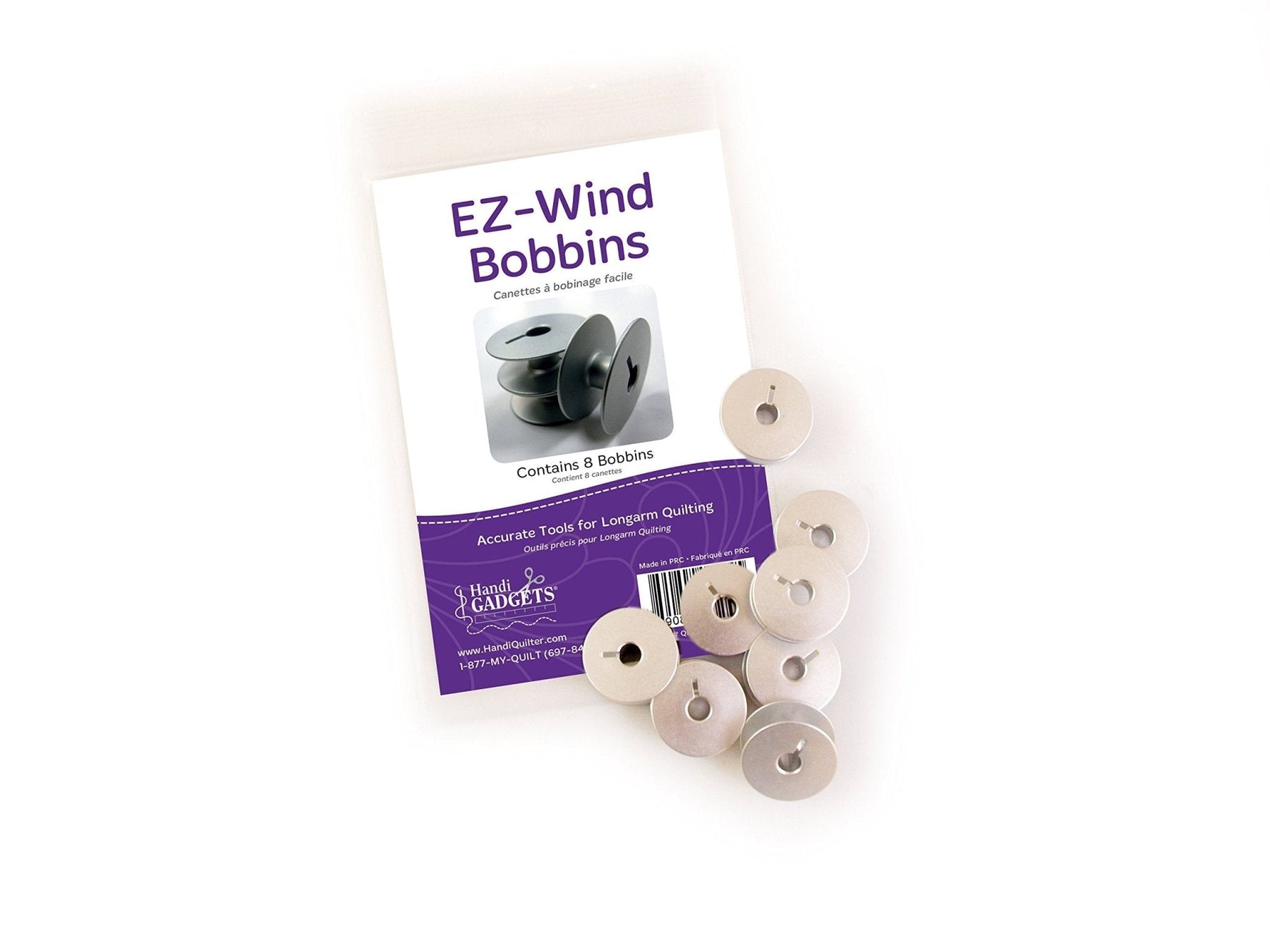

M-class bobbins hold roughly triple the thread of a Class 15 — essential when an edge-to-edge design eats 100+ yards of bobbin thread. Longarm-specific gear worth knowing: EZ Wind slot M-class bobbins ($21.99/8) that wind without hand-starting the thread, Gammill M-style bobbins ($16.95), and the TOWA bobbin tension gauge ($149.99) — the tool that turns bobbin tension from guesswork into a number. If that last one intrigues you, our longarm troubleshooting content (like the Handi Quilter hook timing guide) goes deeper.

Winding a Bobbin That Behaves

• Wind at moderate speed — full-throttle winding stretches polyester thread, which then relaxes in the case and loosens your tension.
• Never wind over old thread. Layers shift; tension wobbles.
• Fill evenly and stop at ~90% — overfilled bobbins drag against the case.
• Or skip winding entirely: prewound bobbins offer factory-perfect consistency, especially for embroidery.
