What Does a Bobbin Case Do? (Complete Beginner to Advanced Guide)

Why the Bobbin Case Is One of the Most Important Parts in Your Machine

Most people think the bobbin case simply holds the bobbin — but in reality, it plays a critical role in how every stitch is formed. Without a properly functioning bobbin case, your machine cannot create balanced, consistent stitches.

The bobbin case controls lower thread tension, guides thread flow, and works directly with the rotary hook to form the lockstitch. If it is damaged, worn, or incorrect for your machine, stitch quality can break down immediately.

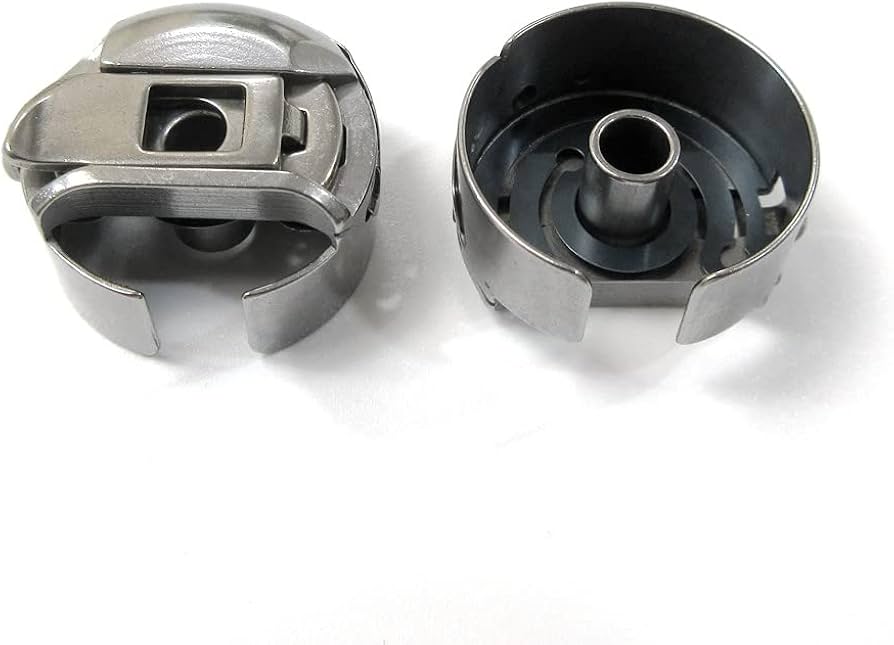

What the Bobbin Case Actually Does

The bobbin case has three primary functions:

• It holds the bobbin securely in place
• It applies controlled tension to the bobbin thread
• It allows the thread to feed smoothly during stitch formation

While this sounds simple, these three roles directly affect every stitch your machine makes.

How a Stitch Is Formed (And Where the Bobbin Case Fits In)

To understand the bobbin case, you need to understand stitch formation.

1. The needle carries the upper thread down through the fabric
2. The needle begins to rise, forming a loop behind it
3. The rotary hook catches that loop
4. The hook pulls the thread around the bobbin case
5. The bobbin thread interlocks with the upper thread

The bobbin case sits at the center of this process. If it does not allow smooth thread flow or proper tension, the stitch cannot form correctly.

How the Bobbin Case Controls Tension

The bobbin case uses a small tension spring to control how tightly the thread feeds from the bobbin.

This tension must be balanced with the upper thread tension. If either side is off, stitch quality suffers.

When the bobbin case is working correctly:

• Stitches are balanced between top and bottom
• The thread feeds smoothly
• No loops or nesting appear

When it is not:

• Thread bunches underneath the fabric
• Tension becomes inconsistent
• Stitches look uneven or loose

Different Types of Bobbin Cases

Drop-In (Top Load) Bobbin Cases

These are common in many modern machines. The bobbin sits horizontally and is easy to access.

They are generally more user-friendly but still rely on precise tension control.

Front-Load Bobbin Cases

These are typically found in more traditional or industrial-style machines.

The bobbin sits vertically, and the case is removable. These often allow more direct tension adjustment.

Example replacement options include:

• Singer Class 15 Bobbin Case
• Pfaff Front-Load Bobbin Case

What Happens When a Bobbin Case Goes Bad

A failing bobbin case can cause a wide range of issues that are often misdiagnosed.

Common problems include:

• Thread bunching under fabric
• Skipped stitches
• Thread shredding or breaking
• Inconsistent tension
• Unusual noise in the hook area

If you are seeing these issues, it is worth reviewing our full diagnostic guide:

How to Tell If Your Bobbin Case Is Bad

Why Using the Correct Bobbin Case Matters

Not all bobbin cases are interchangeable. Even small differences in design can affect how the machine performs.

Using the wrong bobbin case can lead to:

• Poor stitch formation
• Tension problems
• Increased wear on other parts
• Potential machine damage

Here are examples of machine-specific bobbin cases:

• Brother Bobbin Case XF5707101
• JUKI Bobbin Case 40080420
• Janome Bobbin Case 846652009
• Pfaff / Viking Bobbin Case 68003696

How the Bobbin Case Works with the Hook System

The bobbin case does not operate alone. It works directly with the rotary hook or oscillating hook system.

If the bobbin case is worn or out of spec, it can interfere with:

• Hook timing
• Thread pickup
• Smooth rotation

In more advanced cases, the issue may extend beyond the bobbin case into the hook assembly itself, such as:

Rotary Hook Assembly Replacement

Final Thoughts

The bobbin case may seem like a small part, but it has a massive impact on how your machine performs. It controls tension, supports stitch formation, and ensures smooth thread flow during sewing.

Understanding how it works gives you a major advantage when diagnosing problems and maintaining your machine.

If your machine is not sewing correctly and basic troubleshooting has not solved the issue, the bobbin case is always one of the first components worth inspecting.
