How to Tell If Your Bobbin Case Is Bad (Full Diagnosis Guide + Fixes)

Why the Bobbin Case Matters More Than Most Sewers Realize

The bobbin case is one of the most important stitch-forming parts in your sewing machine. It helps control lower thread tension, guides the bobbin thread consistently, and works directly with the hook system to create every clean, balanced stitch.

When a bobbin case starts going bad, the symptoms can look like something else entirely. Many people assume they have a tension issue, a threading issue, a dull needle, or even a timing problem when the real culprit is the bobbin case itself.

If you are seeing inconsistent stitches, thread nesting, shredding, unexplained noise, or constant tension issues, this guide will help you diagnose whether your bobbin case is actually the problem, what to inspect, and when replacement is the smarter move.

What a Bobbin Case Actually Does

Your bobbin case does far more than just “hold the bobbin.” It also:

• Controls how the bobbin thread feeds during stitch formation
• Works with the tension spring to maintain lower thread tension
• Helps the hook pick up and release thread smoothly
• Keeps the bobbin positioned correctly while the machine runs at speed

If the bobbin case is worn, burred, bent, cracked, out of position, or simply the wrong part for the machine, stitch quality can fall apart fast.

Most Common Signs Your Bobbin Case Is Bad

1. Thread Bunching Under the Fabric

One of the biggest warning signs of a failing bobbin case is thread bunching underneath the fabric. Many people call this bird nesting, looping, or thread wad buildup under the needle plate.

This can happen when:

• The bobbin case is not applying proper tension
• The tension spring is damaged or worn
• The thread path inside the case is rough or obstructed
• The case is not seated correctly in the hook area

If you have already rethreaded the machine, checked the upper tension, and changed the needle, the bobbin case becomes one of the first parts worth inspecting closely.

2. Skipped Stitches That Do Not Make Sense

A damaged or worn bobbin case can also contribute to skipped stitches, especially when the machine seems to sew fine for a moment and then suddenly starts missing stitches for no obvious reason.

This usually happens because the stitch-forming area is no longer working together smoothly. If the bobbin case is worn, loose, damaged, or incorrect, the hook may not interact with the thread loop as cleanly as it should.

Skipped stitches are especially suspicious when:

• You already installed a new needle
• You rethreaded the machine properly
• The issue happens on multiple fabrics
• The problem comes and goes unpredictably

3. Thread Shredding, Fraying, or Breaking

A good bobbin case should let thread move smoothly. A bad one can slowly destroy thread every time the machine cycles.

Look for these clues:

• Thread looks fuzzy after sewing
• Thread shreds near the bobbin area
• Thread breaks even after rethreading
• The problem gets worse at higher speed

In many cases, the cause is a small burr or rough edge somewhere on the bobbin case. Even a very tiny nick in the metal can create enough friction to fray or snap thread repeatedly.

4. Tension Problems That Will Not Respond to Adjustment

If your tension looks wrong no matter what you do, the bobbin case may no longer be applying consistent lower tension.

This often shows up as:

• Loose stitches on the underside
• Erratic tension from one seam to the next
• A machine that sews fine on one project and poorly on the next
• No real improvement after careful tension adjustment

When a bobbin case spring is worn, damaged, dirty, or distorted, it may not hold thread with the steady resistance needed for balanced stitches.

5. Clicking, Knocking, or Unusual Hook-Area Noise

A properly seated bobbin case should run quietly and smoothly. If you start hearing clicking, knocking, scraping, or irregular noise near the hook area, do not ignore it.

That can mean:

• The bobbin case is not seated correctly
• The case is damaged or out of shape
• The hook is contacting the case improperly
• The wrong bobbin case has been installed

Once noise starts, it is important to inspect the area quickly. Continuing to sew with a damaged bobbin case can sometimes lead to hook damage, needle strikes, or more expensive repair work.

How to Inspect a Bobbin Case the Right Way

Step 1: Remove the Bobbin Case Carefully

Turn the machine off, remove the needle if needed for safety, and open the bobbin area. Depending on the machine, you may be working with a top-loading drop-in style or a front-load system.

Do not force anything out. Remove the bobbin case gently and pay attention to how it was seated before removal.

Step 2: Look for Burrs, Nicks, and Rough Spots

Use strong lighting and inspect the bobbin case carefully. Focus on:

• The thread path
• The outer edges
• The tension spring area
• Any place where thread rubs during sewing

If you see scratches, chips, impact marks, bent metal, or visible roughness, that is a major warning sign.

Step 3: Check the Tension Spring

The tension spring should look even, secure, and clean. If it is bent, loose, damaged, or packed with lint, tension can become inconsistent very quickly.

Sometimes a deep cleaning helps. Other times, the spring or the entire bobbin case is simply too worn to trust.

Step 4: Pull Thread Through the Case by Hand

Insert bobbin thread and pull it through the tension path manually. It should feel smooth and controlled.

Warning signs include:

• Jerky resistance
• Sudden snagging
• Too much looseness
• Uneven drag from one pull to the next

Step 5: Reinstall It and Check the Fit

Before sewing again, reinstall the bobbin case correctly and verify that it sits exactly as it should. If it feels loose, unstable, misaligned, or difficult to seat, stop and recheck the part number and condition.

When the Bobbin Case Is the Real Problem — and When It Is Not

It is important to be honest during diagnosis. A bad bobbin case can cause real trouble, but not every stitch problem means the bobbin case is bad.

Check these first:

• Incorrect threading
• Wrong bobbin style
• Damaged or incorrect needle
• Lint buildup in the hook area
• Upper tension problems
• Needle plate or hook damage

If you have already ruled those out and the symptoms continue, the bobbin case becomes a much stronger suspect.

When You Should Replace the Bobbin Case

You should strongly consider replacement if:

• You can see burrs, cracks, bent metal, or impact damage
• The tension spring is worn or inconsistent
• Thread continues to shred or break after basic troubleshooting
• The machine keeps nesting thread or skipping stitches
• The hook area is making noise and the bobbin case fit seems questionable
• You are not confident the installed part is the correct bobbin case for the machine

At that point, continuing to fight the part usually wastes more time than replacing it.

Using the Correct Replacement Bobbin Case Matters

Not all bobbin cases are interchangeable, even when they look very similar. Installing the wrong one can create tension issues, poor stitch formation, extra noise, and sometimes damage in the hook area.

If you need a replacement, always match the exact part to the machine model or OEM part number whenever possible.

Here are a few examples pulled directly from our current ThreadWorks bobbin case inventory:

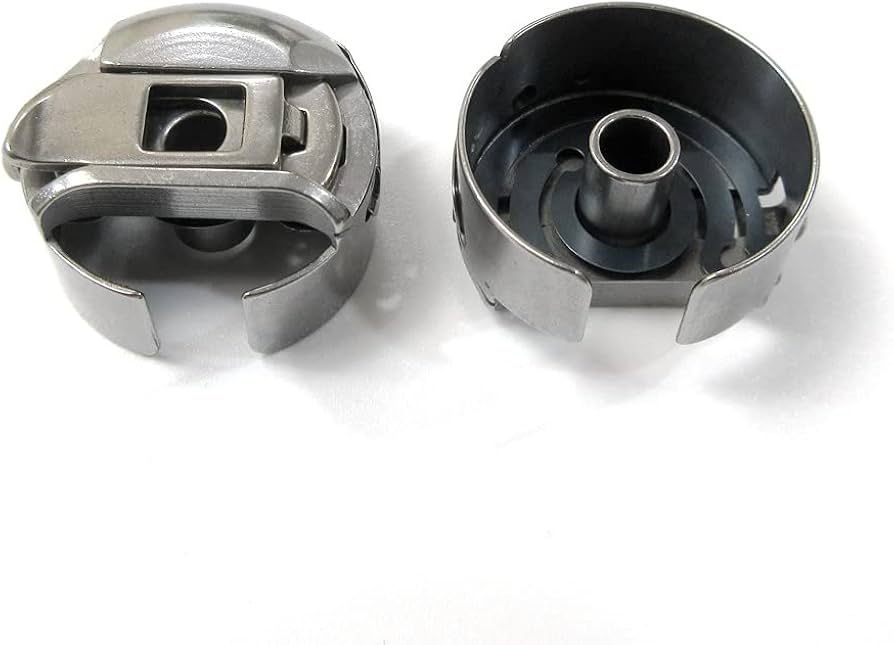

• Brother & Baby Lock Bobbin Case XC3152221
• Brother Bobbin Case XF5707101
• JUKI Bobbin Case 40080420
• Janome Bobbin Holder / Bobbin Case 846652009
• Pfaff / Husqvarna Viking Bobbin Case 68003696
• Husqvarna Viking & Pfaff Bobbin Case 68002499
• Pfaff Icon / Husqvarna Viking Epic Bobbin Case 68005213
• Singer Class 15 Bobbin Case H71185000
• Singer Bobbin Case 51045
• OEM Bobbin Case NB1275000

If your machine uses a front-load hook system, you may also need a more specific style such as the Pfaff Bobbin Case 412748401 for front-load rotary hook machines. And if your issue goes beyond the bobbin case itself, the problem may be in the surrounding hook area, such as the Pfaff Rotary Hook Assembly 412747002.

Common Mistakes People Make When Diagnosing Bobbin Case Problems

Replacing the Bobbin Case Too Early

Sometimes the real problem is incorrect threading, the wrong bobbin, lint under the tension spring, or a damaged needle. Always inspect and troubleshoot carefully first.

Ignoring Small Burrs

Even a tiny rough spot can create major sewing issues. Do not dismiss minor-looking damage if the thread passes through that area.

Using a “Close Enough” Bobbin Case

This is a huge mistake. Bobbin cases that look almost identical may still fit poorly or sew badly in the wrong machine.

Continuing to Sew Through Noise

If the hook area starts clicking or scraping, stop and inspect it. Running the machine in that condition can turn a simple bobbin case issue into a more expensive repair.

Final Thoughts

If your sewing machine is suddenly giving you tension headaches, skipped stitches, thread nests, noisy operation, or shredded thread, the bobbin case deserves a very close look.

A bad bobbin case often creates symptoms that look like bigger problems, which is exactly why so many people waste time adjusting everything else first. Once you know what to inspect and what warning signs matter, it becomes much easier to decide whether the part can be cleaned and reinstalled or whether replacement is the better move.

When in doubt, using the correct OEM-style replacement bobbin case for your machine is one of the smartest ways to restore clean, reliable stitch quality and avoid deeper hook-area damage.
