Handi Quilter Hook Installation & Timing Guide (Step-by-Step)

If your machine is:

• Skipping stitches
• Breaking or shredding thread
• Producing inconsistent stitch formation

👉 The issue is almost always hook timing.

This guide will walk you through correct installation AND precise timing adjustment — the same process used by professional longarm technicians.

Tools Required

• 2.0mm Allen wrench (hook screws)
• 2.5mm Allen wrench (position bracket)
• Flathead screwdriver (needle plate)
• Bright lighting (critical for timing accuracy)

Step 1: Remove Needle Plate

• Use a flathead screwdriver to remove the needle plate
• Set screws aside carefully
• Rotate machine to bring needle to lowest point

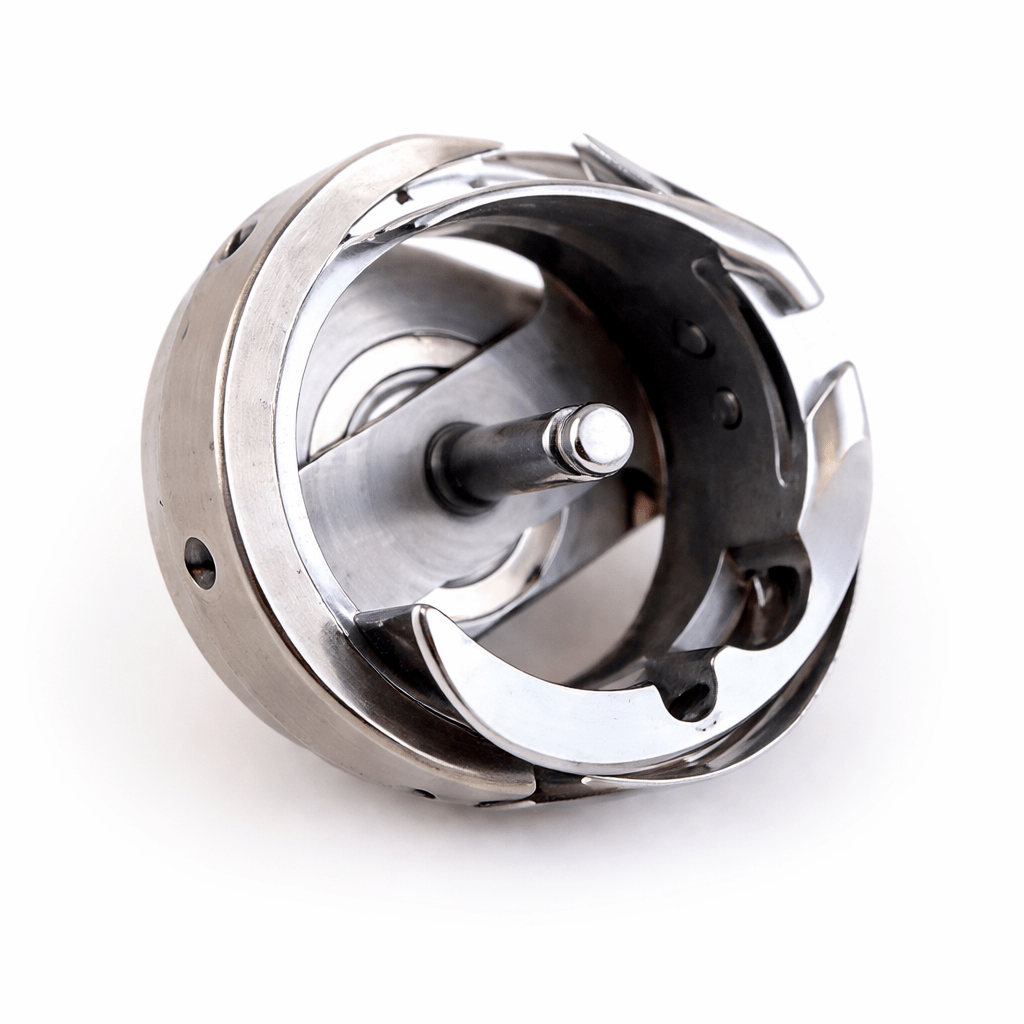

Step 2: Remove the Hook

• Locate the 2mm Allen screws securing the hook
• Loosen and remove hook
• Inspect for burrs, damage, or debris

👉 If the hook is damaged, timing alone will NOT fix your issue

Step 3: Loosen the Position Bracket

• Locate the hook position bracket
• Use the 2.5mm Allen to loosen it
• Do NOT remove — just allow adjustment

Step 4: Reinstall the Hook

• Place hook back into basket
• Ensure it sits fully flush and centered
• Lightly tighten hook screws (leave slight adjustability)

Step 5: Precise Hook Timing (CRITICAL)

This is the most important part of the entire process — and where most timing jobs go wrong.

Understanding What You’re Aligning

The hook must:

• Catch the thread loop formed behind the needle
• Pass the needle at the exact moment the loop is available
• Be positioned extremely close without touching

If ANY of these are off → stitching fails.

Exact Timing Position (Professional Standard)

Follow this EXACT sequence:

1. Bring needle to lowest point

Rotate machine until needle is fully down.

2. Raise needle slightly

Bring the needle up approximately 1.8mm – 2.2mm (about 1/16")

👉 This is the critical window where the loop forms.

3. Align hook tip to needle scarf

At this exact moment:

• The hook tip should be directly behind the needle
• It should intersect the center of the needle scarf
• The hook tip should sit just above the eye of the needle

👉 If it's too low → misses loop
👉 If it's too high → weak stitch pickup

4. Set hook-to-needle clearance

• Clearance should be extremely tight
• About the thickness of a piece of paper

👉 Too far away → skipped stitches
👉 Too close → needle deflection or breakage

5. Lock timing in place

Once perfectly aligned:

• Hold position steady
• Tighten position bracket (2.5mm Allen)
• Fully tighten hook screws (2mm Allen)

⚠️ IMPORTANT: Tighten evenly — uneven pressure can shift timing

Pro Technician Tips

• Always rotate machine by hand during setup
• Watch the hook pass the needle multiple times
• Timing should look buttery smooth — no hesitation
• Slightly error on the side of closer clearance, not wider

Step 6: Reassemble

• Reinstall needle plate
• Confirm needle is straight and properly installed

Step 7: Test Stitching

Test on scrap fabric and check:

• Clean stitch formation
• No skipped stitches
• No thread shredding

If issues remain:

👉 Make MICRO adjustments — very small movements matter

Common Timing Mistakes

• ❌ Hook arriving too early → no loop formed
• ❌ Hook arriving too late → loop already collapsed
• ❌ Too much clearance → inconsistent pickup
• ❌ Loose bracket → timing drifts while sewing

When to Replace the Hook

Replace your hook if:

• Visible wear or burrs
• Constant thread breaks
• Timing won’t hold
• Machine has heavy use hours

Final Thoughts

Hook timing is one of the highest-impact adjustments you can make.

When done correctly, your machine will:

• Stitch clean at high speeds
• Eliminate skipped stitches
• Run smoother and quieter
