Signs Your Rotary Hook Is Damaged (And When You Need to Replace It)

Why the Rotary Hook Is One of the Most Critical Parts in Your Machine

The rotary hook is the core of your sewing machine’s stitch formation system. Every single stitch depends on it catching the upper thread at the exact right moment and looping it cleanly around the bobbin case.

When the hook is in perfect condition, your machine runs smooth, quiet, and consistent. When it becomes damaged — even slightly — you can start seeing skipped stitches, shredded thread, strange noises, and unpredictable sewing performance.

The challenge is that rotary hook damage is often misdiagnosed. Many people chase tension settings, replace needles repeatedly, or assume their machine is out of time, when the real issue is physical damage to the hook itself.

What the Rotary Hook Actually Does

The rotary hook rotates around the bobbin case and is responsible for catching the loop of upper thread created by the needle.

This process happens in milliseconds:

• The needle goes down through the fabric
• It begins to rise and forms a thread loop
• The hook catches that loop precisely
• The loop is carried around the bobbin case
• The stitch is formed

If the hook is damaged, worn, or rough in any way, this entire process becomes inconsistent.

Most Common Signs of a Damaged Rotary Hook

1. Thread Shredding or Fraying Near the Bobbin Area

This is one of the clearest indicators of hook damage.

If your thread looks fuzzy, frayed, or starts snapping — especially near the bobbin area — the hook is often the cause.

• Small burrs on the hook edge cut the thread
• Rough surfaces create excessive friction
• The problem gets worse at higher speeds

Even a tiny imperfection can destroy thread quickly.

2. Skipped Stitches That Don’t Respond to Normal Fixes

If you’ve already changed your needle, rethreaded the machine, and checked tension, but stitches are still skipping — the hook condition becomes a major suspect.

• The hook may not be catching the thread loop cleanly
• Damage disrupts the pickup point
• Results are often inconsistent and random

This is often confused with timing issues, but the root cause can be physical damage instead.

3. Clicking, Knocking, or Grinding Sounds

A healthy hook system should run quietly. If you hear noise coming from the hook area, do not ignore it.

• Clicking during rotation
• Knocking under load
• Scraping or grinding sounds

This can indicate the hook is damaged, out of alignment, or making contact with the bobbin case improperly.

4. Needle Strikes That Changed Machine Performance

If your needle has ever hit the hook, there is a strong chance damage occurred.

• Small dents or nicks form instantly
• The hook edge becomes uneven
• Stitch quality may never recover without repair

Even one needle strike can be enough to cause long-term problems.

5. Inconsistent Stitch Quality Across Different Fabrics

A damaged hook may perform “okay” on some materials and fail on others.

• Clean stitches on light fabric but issues on heavier material
• Random tension inconsistencies
• Unpredictable performance

This inconsistency is a major red flag.

How to Inspect a Rotary Hook Properly

Step 1: Access the Hook Area

Remove the needle plate and bobbin case to fully expose the hook assembly.

Step 2: Use Bright, Direct Lighting

Good lighting is critical. Many defects are extremely small and easy to miss.

Step 3: Look for Physical Damage

• Burrs or rough edges
• Scratches or scoring
• Dents from needle contact
• Uneven or worn surfaces

Step 4: Check by Feel

Carefully run your fingernail along the hook edge. If anything catches, that is enough to cause thread damage during sewing.

When the Problem Might Be the Bobbin Case Instead

Because the hook and bobbin case work together, their symptoms can overlap.

If you are seeing thread nesting, tension issues, or stitch problems, the bobbin case may also be involved.

Read our full guide on diagnosing a bad bobbin case

When You Should Replace the Rotary Hook

You should strongly consider replacing the hook if:

• You see visible burrs or dents
• Thread continues to shred
• The machine makes noise in the hook area
• A needle strike occurred
• Stitch issues persist after full troubleshooting

Severely damaged hooks are not worth trying to “fix” — replacement is the correct solution.

Choosing the Correct Rotary Hook Assembly

Rotary hooks are precision components and must match your machine exactly. Using the wrong part can create more problems than it solves.

Here is an example of a replacement hook assembly:

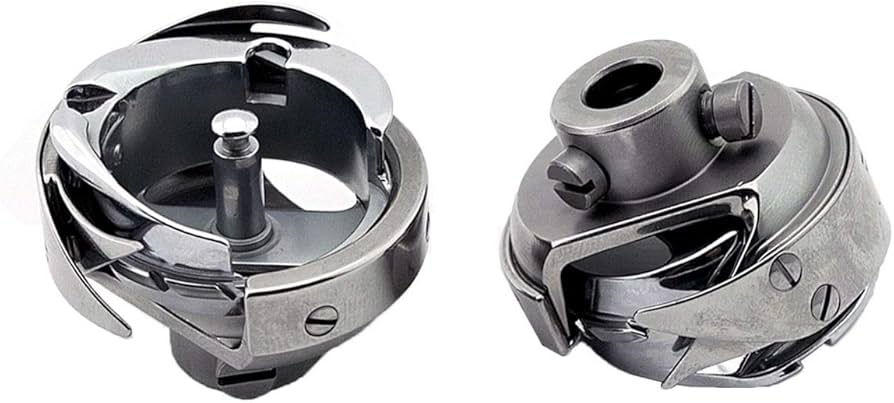

Rotary Hook Assembly Replacement

This is just one example — many machines require different hook assemblies depending on brand and model.

Find the Right Rotary Hook for Your Machine

At ThreadWorks, we carry a wide range of sewing machine parts across major brands including Brother, Janome, JUKI, Pfaff, Husqvarna Viking, Singer, and more.

Browse ThreadWorks to find the correct rotary hook for your machine

Always confirm compatibility by checking your exact machine model number in the product description. This is the best way to ensure proper fitment and avoid ordering the wrong part.

If your machine uses a different hook system or requires a specific configuration, the product description will clearly list compatible models to help guide your selection.

Final Thoughts

A damaged rotary hook is one of the most overlooked causes of sewing machine problems. Because it works at the center of stitch formation, even small imperfections can have a major impact.

If your machine is making noise, shredding thread, skipping stitches, or behaving inconsistently, inspecting the hook is one of the smartest diagnostic steps you can take.

Replacing a worn or damaged hook restores smooth operation, protects surrounding components, and brings your stitch quality back to where it should be.
