Sewing Machine Runs But the Needle Won't Move? How to Replace a Motor Belt

It's one of the most alarming failures in sewing — and one of the cheapest to fix. You press the pedal, the motor hums like always, maybe the handwheel even spins… and the needle just sits there. Before you price out a new machine, meet the humble part that's almost certainly responsible: the motor belt, the rubber loop that carries power from the motor to everything that moves.

What the Motor Belt Does

Inside your machine, the motor doesn't drive the needle directly. It spins a pulley, and a toothed or V-shaped rubber belt transfers that rotation to the main shaft — which drives the needle bar, the feed dogs, and the hook. Rubber ages: it stretches, glazes, cracks, and eventually snaps. When it does, the motor spins happily while the machine goes nowhere. Every mechanical connection in the machine is fine; the messenger just quit.

Symptoms of a Worn or Broken Motor Belt

1. Motor runs, needle doesn't move — the signature symptom of a snapped belt.

2. Machine loses power under load — sews light cotton fine, stalls on denim. A stretched, slipping belt transmits less and less torque.

3. Intermittent "catching" — the needle moves, hesitates, moves again as a glazed belt grips and slips.

4. A burnt-rubber smell after sewing — a slipping belt heating itself against the pulley.

5. Squealing at startup that fades as the machine warms — classic belt glazing.

6. Visible cracks, fraying, or shine on the belt when you open the side cover.

A note before you commit to the diagnosis: if the needle won't move and the handwheel is hard to turn, that's not the belt — that's a jam or a lubrication issue, and our jamming guide and grinding noise guide are your next stops. A belt failure leaves the handwheel turning freely.

The Part You Need

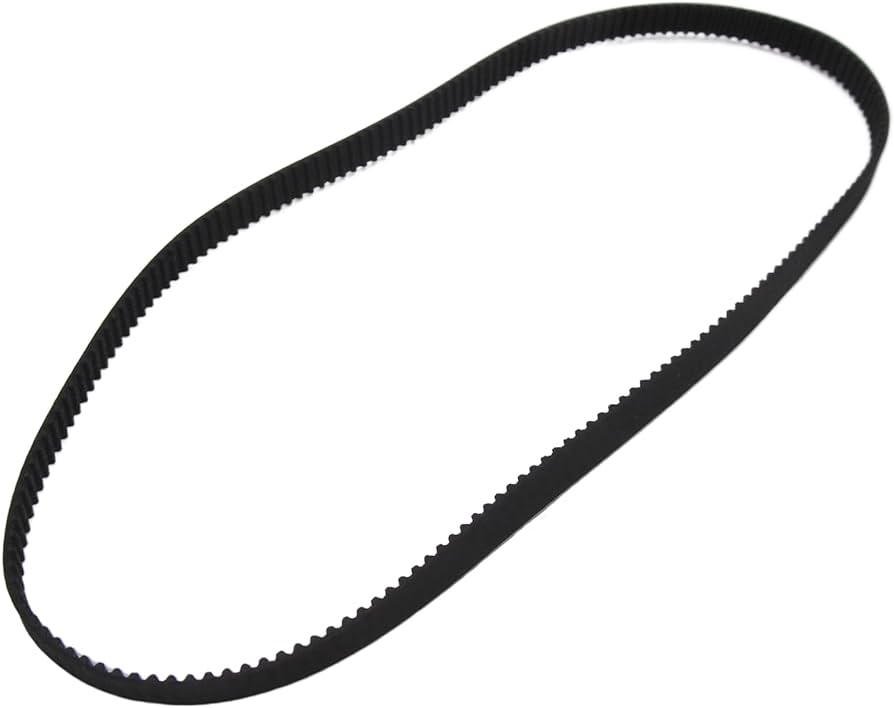

For Babylock and Brother machines that take it, the genuine part is the 15½" Motor Belt #XA9644000 — $11.95. Belt length and tooth profile are machine-specific, so match your model (check your manual, or ask us with your model number — we'll confirm fit before you order). Can't find your manual? We keep a guide on finding manuals for any brand.

How to Replace a Motor Belt, Step by Step

Step 1 — Unplug the machine. You'll be working beside the motor. Always.

Step 2 — Open the belt compartment. On most home machines that's the side cover or end cap on the handwheel side, held by a screw or two. Set screws in a dish — they're all slightly different sizes and they know it.

Step 3 — Photograph the belt path. One belt, two pulleys, simple — until the old belt is out and you're second-guessing the routing.

Step 4 — Remove the old belt. Many machines let you ease the belt off by rotating the handwheel while guiding it over the pulley edge, like a bicycle chain. If the motor mounts on an adjustable bracket, loosening the bracket slackens the belt and makes this effortless.

Step 5 — Seat the new belt. Loop the new belt over the motor pulley first, then walk it onto the handwheel pulley with a slow rotation. Teeth (if toothed) must seat in the grooves, not ride on top.

Step 6 — Set tension. The right tension deflects about a quarter inch under light finger pressure — taut, not tight. Overtightening is the classic DIY error: it strains motor bearings and wears the new belt prematurely. Adjust via the motor bracket, then snug everything down.

Step 7 — Hand-test, then power-test. Rotate the handwheel through several full cycles — smooth, no rubbing. Reassemble the cover, plug in, and run the machine slowly, then at speed. Quiet, immediate needle response means you just saved yourself a service bench fee.

Frequently Asked Questions

How long does a sewing machine motor belt last?

Years to decades depending on use and climate — dry heat ages rubber fastest (we're in Arizona; we know). Any belt over 15 years old is living on borrowed time even if it looks fine.

Can I use a generic belt?

A close-but-wrong belt slips, squeals, or strains the motor. At $11.95 for the genuine part, the shortcut saves nothing.

The belt is fine but the machine still won't sew — what next?

Work through our top 10 sewing machine problems guide, or chat with our support team — real techs, real answers.

Order the part, fix it tonight: Motor Belt XA9644000 — $11.95, ships fast from Arizona. Browse all Brother and Babylock parts while you're at it — keeping machines alive is what we've done since 1977.
