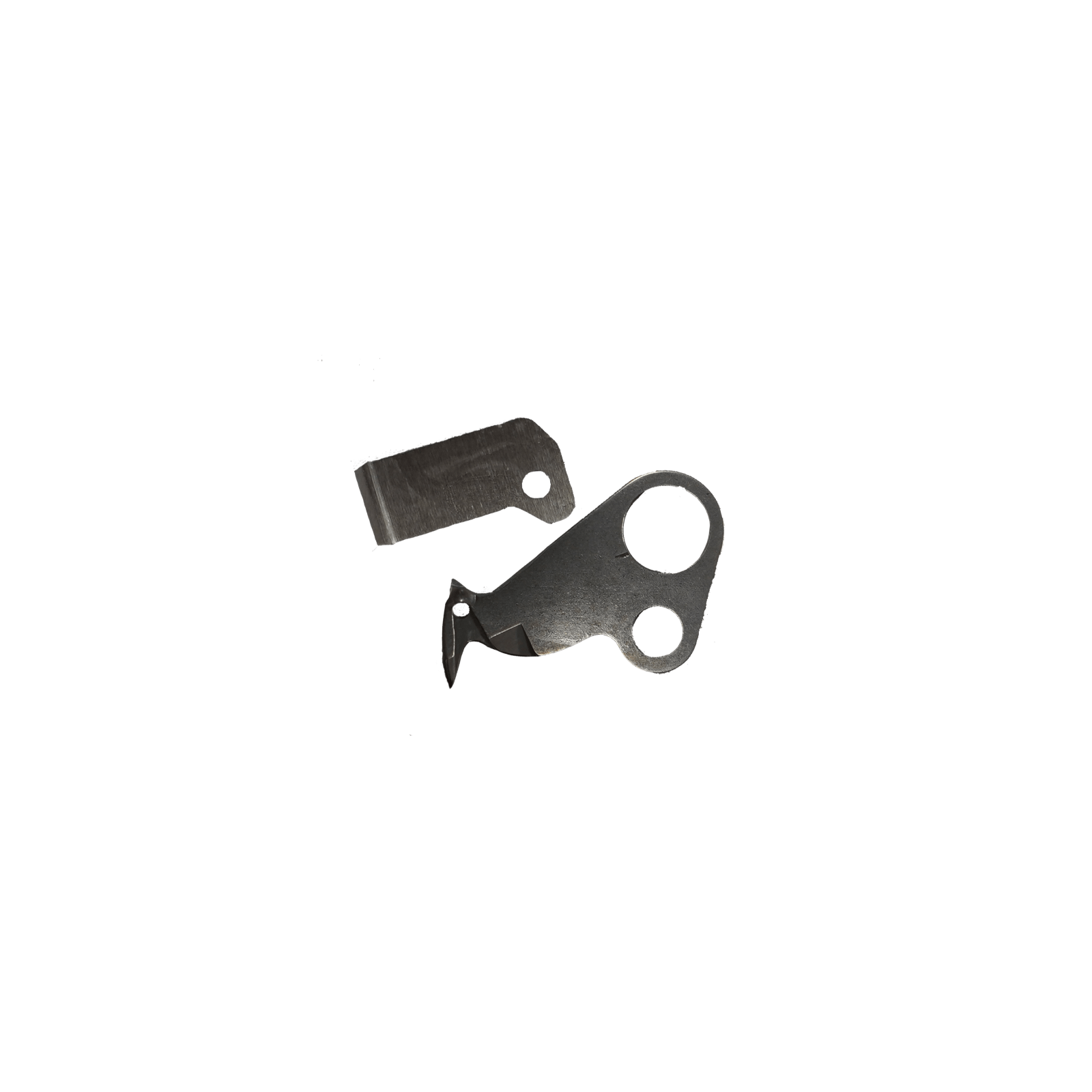

Serger fixed and movable knife replacement blades for Brother and Babylock sergers

Serger Not Cutting Fabric? How to Replace Your Serger Knives (Fixed & Movable Blade Guide)

A serger's superpower is that it trims the seam allowance a split second before wrapping it in thread. So when the knives go dull, everything downstream falls apart at once: edges come out chewed and fuzzy, fabric folds under the loopers instead of trimming, stitch width goes erratic, and lightweight knits get dragged down into the machine. The good news — serger knives are consumable parts, designed to be replaced at home, and on most Brother and Baby Lock sergers the job takes fifteen minutes with one screwdriver.

How the Two-Knife System Actually Works

Every serger cuts with a pair of blades that shear against each other like scissors:

  • The movable knife (upper knife) — rides up and down with every stitch cycle. On most home sergers it's made of a harder alloy and does the driving. Replace it with the Movable Knife #XC6908151 ($43.95) for Brother and Baby Lock models.
  • The fixed knife (lower knife) — sits stationary in the bed and acts as the shearing surface. It's the softer blade by design, so it wears first and costs less: Fixed Knife #XC5882051 ($14.99).

Because the fixed knife is sacrificial, the standard service pattern is: replace the fixed knife first. If cutting is still poor with a new fixed knife, the movable knife is worn too. Hitting a pin replaces both — no exceptions. A nicked blade will snag threads on every rotation.

7 Signs Your Serger Knives Are Dull

  1. Fuzzy, chewed edges instead of a clean slice — the classic first symptom.
  2. Fabric folds or bunches at the knife instead of trimming — the blades are pushing, not shearing.
  3. Skipped trimming on lightweight fabrics — chiffon and jersey need sharp blades most.
  4. A rhythmic clicking or scraping at the cutting point — possible nick from a pin strike. (Grinding from elsewhere in the machine is a different problem — see our grinding noise diagnosis guide.)
  5. Inconsistent seam allowance width — dull blades deflect fabric before cutting it.
  6. Threads of fabric caught in the stitch — uncut fibers getting wrapped into the overlock.
  7. You can't remember ever changing them — with regular use, knives typically last 1–2 years. Heavy polyester fleece, metallic fabrics, and anything with adhesive shortens that dramatically.

Before You Replace: Rule Out the Impostors

Two problems masquerade as dull knives. First, lint packing — a serger turns trimmed allowance into confetti, and a wall of compacted lint behind the fixed knife will deflect fabric exactly like a dull blade. Clean the knife area thoroughly and test again. Second, a disengaged upper knife — most sergers let you rotate the movable knife out of action for flatlocking; it's easy to bump. Check yours is locked in the cutting position.

How to Replace the Fixed (Lower) Knife

  1. Unplug the machine. Your hands will be millimeters from blades and the needle.
  2. Open the front/side cover and remove lint with a brush. You need to see the full knife assembly.
  3. Turn the handwheel until the movable knife is at its highest position, out of the way.
  4. Loosen the set screw holding the fixed knife — on most Brother/Baby Lock models this takes a flat screwdriver or a small hex key like the 1.5mm Hexagonal Driver #XC5159051 ($5.99). Note the blade's exact seating depth before pulling it.
  5. Seat the new blade so its cutting edge sits flush with, or a hair above, the needle plate surface — this is the critical adjustment. Too low and it won't shear; too high and it fights the movable knife.
  6. Tighten, then hand-crank the wheel through several full rotations. The blades should pass with light, even contact — never a hard clash.

How to Replace the Movable (Upper) Knife

  1. With the machine still unplugged, lower the movable knife to its bottom position via the handwheel so you can access its mounting screw.
  2. Remove the mounting screw and the old knife, noting the orientation — the beveled edge faces the fixed knife. If your model uses a spacer behind the blade, don't lose it; a missing or worn Movable Knife Spacer #XE1845001 ($4.99) changes the blade geometry enough to ruin the cut even with brand-new knives.
  3. Install the new blade so that at its lowest point, its cutting edge overlaps the fixed knife edge by roughly 0.5–1mm. That slight overlap is what makes the shear.
  4. Hand-crank several rotations, then test on 2–3 layers of woven scrap. A healthy cut is silent and effortless.

The Test That Tells You It's Fixed

Run a strip of medium-weight cotton through at moderate speed, then a strip of slippery lining or light knit. Both edges should be glass-clean with no fuzz and no deflection. If the woven cuts fine but the lightweight still chews, re-check blade overlap — and confirm your differential feed isn't stretching the fabric into the knife (that's the wavy-edge problem covered in our serger wave fix guide).

Make the Next Set Last Longer

  • Never serge over pins. The single biggest blade killer. Clip-style fabric clips or a different pinning line solve it.
  • Brush out the knife area every project — compacted lint holds moisture against the blades and abrades the edges.
  • Match thread to the machine — cheap, linty overlock thread accelerates wear at the cutting point. Our serger thread guide explains what to look for.
  • Keep a spare fixed knife in the drawer. At $14.99 it's the cheapest insurance in your sewing room.

Find both knives, spacers, and drivers for your model in our Brother parts and Baby Lock parts collections — all genuine OEM components.
