Walking Foot vs Built-In Dual Feed: Which You Have, and Which You Need

Feed dogs sit under the fabric, so they only ever move the bottom layer. On a single layer that is fine. On a quilt sandwich, or two layers of anything slippery, the bottom feeds and the top lags — which is why long seams drift, why binding ends up with a pleat you did not put there, and why the last six inches of a straight line never match the first six.

A walking foot and a built-in dual feed both solve that by adding a second set of grippers above the fabric. They are not the same thing, they do not fit the same way, and the difference determines which other feet you can use while they are engaged.

Two different mechanisms

A walking foot is a self-contained mechanism that clamps onto the presser bar and takes its motion from the needle bar. As the needle rises and falls, an arm drives a set of feed teeth built into the foot itself, so the foot lifts, moves the top layer forward, sets down and releases in time with the feed dogs below. Everything it needs is inside the foot, which is why a walking foot can be added to almost any machine.

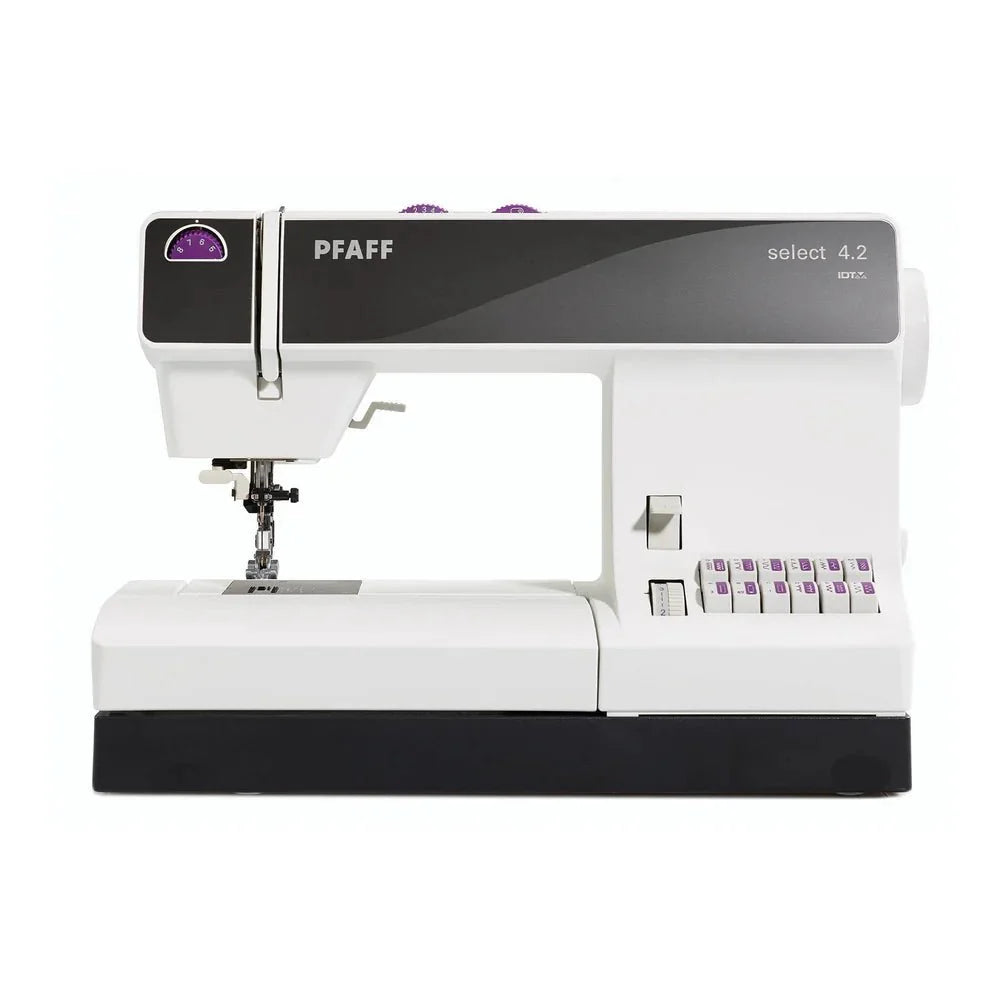

A built-in dual feed is part of the machine. A small feed arm lives permanently behind the presser bar and drops down behind whichever foot is fitted, gripping the top layer and driving it in sync with the feed dogs. Pfaff's IDT and Janome's AcuFeed are the best known versions; several other manufacturers offer their own, and your manual will tell you whether yours has one. If you cannot find the manual, our guide on finding your model number is the way in, and the manual library covers over a thousand machines.

That structural difference — separate accessory versus integrated mechanism — produces every practical difference between them.

The line that decides it: can you use other feet?

This is the difference that matters most and the one people discover late.

A walking foot occupies the presser bar, so while it is on, it is the only foot you have. You cannot walking-foot a ¼" seam, or a zipper, or an open-toe appliqué stitch — you get whatever sole the walking foot came with, usually a general-purpose one and sometimes an included open-toe or quilting-guide variant.

Built-in dual feed sits behind the foot, so it works with your ¼" foot, your zipper foot, your open-toe foot. That combination is genuinely useful: piecing a slippery fabric with an accurate ¼" seam and even feed at the same time is something a walking foot cannot do at all.

If you have dual feed and have never used it, this is the reason to go and find the lever. Most people who own it discover it years after buying the machine.

Where each one actually wins

Reach for a walking foot when:

• You are quilting a thick sandwich — high-loft batting, flannel backing, or a densely pieced top. The dedicated teeth have more bite than a single feed arm.
• You are sewing minky, fleece, vinyl, oilcloth or laminated cotton, where the top layer actively resists moving.
• You want to use the guide bar for evenly spaced straight-line quilting — that small adjustable bar most walking feet include and almost nobody uses. Our quilting presser feet tutorial shows what it is for.
• Your machine has no dual feed, which covers most machines.

Reach for built-in dual feed when:

• You need even feed and a specific foot at the same time — ¼" piecing, zippers, edge-stitching.
• You are working on knits, where reducing top-layer drag is half the battle. See sewing knits on a regular machine.
• You want to switch it on and off repeatedly within one project without changing feet.
• You need to see what you are doing — matching plaids, stopping on a marked line, following a curve.

Either one, for binding. Attaching binding is the classic even-feed job: four layers, a long straight run, and a folded edge that will absolutely walk if only the bottom is being fed. Our binding guide covers the rest of that process.

Before you buy a walking foot

Three fit questions, in order. Getting any of them wrong means a foot that either will not attach or will not sit at the right angle to the needle plate.

1. High shank or low shank? This is a property of your specific model, not of the brand — manufacturers build both. Our guide to high shank vs low shank feet explains how to measure yours in about a minute.
2. Screw-on or snap-on? Walking feet almost always attach by removing the entire presser foot holder and screwing the assembly directly to the presser bar, because the arm has to reach the needle clamp. Make sure you can get the holder off — and keep the screw somewhere you will find it again.
3. Generic or brand-specific? Generic walking feet fit a lot of machines and work acceptably. Brand-specific ones fit better, run quieter, and are the only option on machines with proprietary mounts. If your machine has an unusual mount, a generic foot is not a bargain.

One more check that catches people: stitch width. Many walking feet have a narrow needle slot designed for straight stitch only. Fit one, select a zigzag without checking, and the needle strikes the foot. Turn the handwheel by hand through one complete stitch before running the machine — with any new foot, not just this one. If it does hit, our guide to needle strikes covers what to check for damage.

Mistakes worth avoiding

• Sewing fast. A walking foot has a mechanical cycle to complete on every stitch. Push the speed and the feeding gets less even, not more — which defeats the point of fitting it.
• Leaving dual feed engaged for everything. It grips. On a single layer of lightweight fabric that grip can mark the surface, and on free-motion work it must be disengaged entirely.
• Assuming it fixes tension. Even feed solves a feeding problem. If your stitches look wrong rather than your layers drifting, that is a different diagnosis — see tension troubleshooting.
• Using it for free-motion quilting. Opposite job. Free-motion needs the feed dogs down and the fabric moving freely under a darning or free-motion foot — our free-motion tutorial covers that setup.

Quick answers

Is a walking foot worth buying if I already have dual feed?

Usually not, with one exception: very thick or very grabby materials, where the dedicated teeth outperform a single feed arm. For everyday quilting and garment work, dual feed does the job and does it more conveniently.

Can I use a walking foot for piecing?

You can, but you will lose your accurate ¼" guide, and piecing two flat layers of cotton rarely needs even feed anyway. Save it for the sandwich. Seam accuracy is a separate problem — see the scant quarter-inch seam.

Why is my walking foot so loud?

Because it is a mechanism doing a mechanical job — a rhythmic clatter is normal. A grinding or knocking noise is not; see grinding noises.

Do longarm machines have this?

No, and they do not need it. On a longarm the quilt is held taut on a frame and the machine head moves instead of the fabric, so there is no feeding to synchronize. Longarm feet do entirely different jobs — see longarm feet explained.

My machine came with a foot labeled "even feed". Is that a walking foot?

Yes. "Even feed foot" and "walking foot" are the same thing under different names, and manufacturers use both.

Feet, holders and accessories live in All Parts. If built-in dual feed is on your list for a next machine, Pfaff and Janome are the ranges to look at, and our Pfaff lineup guide explains IDT model by model. Not sure what fits your machine? Send us a photo through the parts request form.
