The Brother 2340CV is a dedicated, high-performance cover stitch machine engineered to deliver professional-grade, industrial finishes on a wide variety of fabrics. Operating with a versatile 2/3/4 thread system, this specialized machine expands your creative capabilities, allowing you to create clean hems, decorative stitching, and durable seams with ease. Whether working with lightweight knits or heavy stretch fabrics, the 2340CV eliminates puckering and skipped stitches, making it an essential addition to any serious garment maker's workspace.
Key Features
-
Advanced 2/3/4 Thread System: Easily switch between a wide triple-needle cover stitch, narrow double-needle cover stitches, and a durable two-thread utility stitch.
-
True Differential Feed: Adjusts fabric delivery seamlessly to prevent stretching, wavy edges on knits, or puckering on fine fabrics.
-
Color-Coded Lay-In Threading: Simplifies setup with a straightforward, color-coded path guide and easy-to-follow lower looper threading system.
-
Fast Threading Tension Release: Allows you to release thread tension with the touch of a button for quick, hassle-free fabric removal.
-
Adjustable Stitch Length and Pressure: Fine-tune your settings via external dials (adjusting stitch lengths from 2.0mm to 4.0mm) to achieve optimal feeding pressure across varying material weights.
-
Dual-Needle & Triple-Needle Options: Uses standard organ or Schmetz sewing machine needles to construct standard 3mm and 6mm cover stitches.
Why Customers Love This Machine
-
Industrial Finishes at Home: Replicate the high-end, double-needle and triple-needle topstitching found on ready-to-wear athletic wear, swimwear, and t-shirts.
-
Tackles Challenging Knits: The robust differential feed system tames ultra-stretch materials, spandex, and fine jersey ribbing without leaving misshapen or wavy seams.
-
Time-Saving Workflow: Unlike combination serger/coverstitch models, this dedicated machine requires no tedious mechanical conversions, allowing you to move directly from serging to hemming.
-
Reliable Stitch Consistency: Built with Brother’s precision engineering, it maintains uniform tension even at high operational speeds up to 1,100 stitches per minute.
Perfect For
-
Garment Designers & Dressmakers: Anyone looking to step up from basic double-needle utility hems to authentic, elastic commercial finishes.
-
Athletic and Swimwear Creators: Tailors working extensively with high-stretch, performance synthetic textiles that demand durable, flexible seams.
-
Upgrading Hobbyists: Crafters who want to separate their serging and cover-stitching workflows into dedicated units for maximum efficiency.

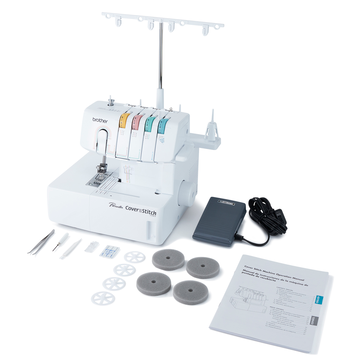

Included Accessories
Specifications
-
Stitch Types: 4-Thread Triple Cover Stitch (6mm), 3-Thread Wide Cover Stitch (6mm), 3-Thread Narrow Cover Stitch (3mm), 2-Thread Chain Stitch
-
Maximum Sewing Speed: 1,100 stitches per minute
-
Stitch Length: 2.0mm to 4.0mm
-
Cover Stitch Width: 3.0mm to 6.0mm
-
Differential Feed Ratio: 0.7 to 2.0
-
Presser Foot Pressure Adjustment: Yes (Screw dial)
-
Needle Type: Standard Household Needles (130/705H)
-
Machine Dimensions: 11.8" W x 11.0" D x 13.2" H
-
Machine Weight: 15.4 lbs
Frequently Asked Questions
-
Q: Can the Brother 2340CV cut fabric fabric edge like a regular serger?
A: No, this is a dedicated cover stitch machine designed purely for hemming, binding, and decorative topstitching. It does not feature a cutting knife. It is built to complement a traditional serger or sewing machine.
-
Q: What type of needles does this machine use?
A: The 2340CV uses standard household sewing machine needles (System 130/705H). For best results on knit or stretch fabrics, we highly recommend using ballpoint or stretch needles.
-
Q: Is it difficult to convert the machine from a 3-needle setup to a 2-needle setup?
A: Not at all. To change stitch configurations, you simply use the included hexagonal wrench to remove the needle you do not need, and unthread the corresponding line.
-
Q: Can this machine perform a standard chain stitch?
A: Yes, by utilizing two threads (one needle and the lower looper), you can create a highly durable and flexible utility chain stitch that is ideal for construction or basting.
