Sewing Machine Tension Assembly Parts Explained: Springs, Discs & Felts (What Wears Out and When to Replace It)

Every tension guide on the internet tells you to turn the dial. Ours included — our upper vs lower tension guide covers the adjustment side thoroughly. But there's a point where adjustment stops working: you turn the dial and nothing changes, or the "right" setting drifts week to week, or tension is perfect for ten minutes and then collapses. That's not a settings problem. That's worn hardware inside the tension assembly — and the parts responsible cost between $3 and $28. Here's the tour no one gives you.

The Tension Assembly, Piece by Piece

Thread leaving the spool passes through a stack of components that together apply a precise, springy drag. In order:

• Tension discs — two (sometimes three) polished metal plates that squeeze the thread between them. The dial changes how hard they squeeze.

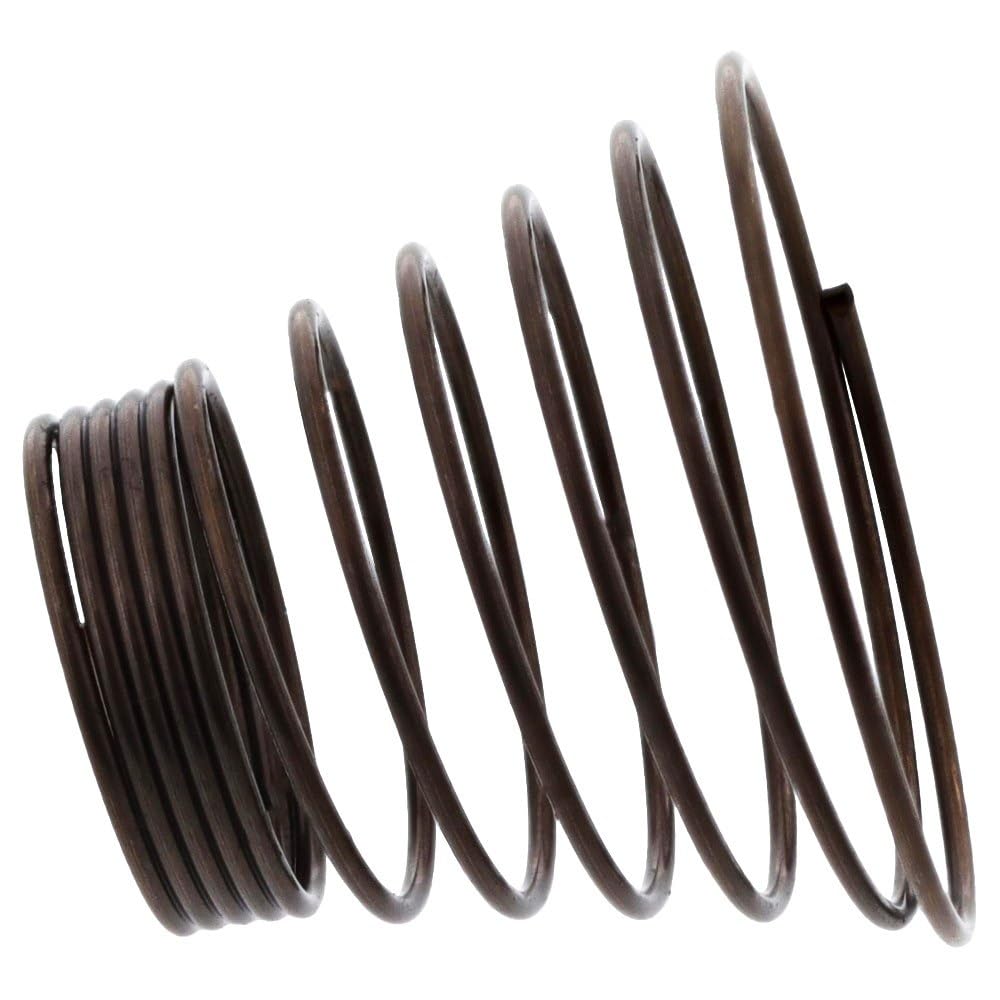

• Tension spring — the coil behind the discs that converts dial position into disc pressure. On Brother and Baby Lock machines this is the Tension Spring #XC6232051 ($2.99).
• Tension spring washer — seats the spring so pressure stays even as the dial turns: Washer #S30564000 ($2.99). A deformed washer is why some machines have one "dead spot" on the dial.
• Tension disc felt — the small felt pad that keeps the thread tracked between the discs and damps vibration: Disc Felt #S36299001 ($3.95). The most-ignored part in the whole stack.
• Check spring (take-up spring) — the fine wire spring that keeps thread taut during the moment the take-up lever descends. Without it, slack thread gets snatched on every stitch cycle.
• Thread guides — not part of the assembly proper, but a grooved or burred guide before or after it adds phantom tension the dial can't explain. On Brother/Baby Lock machines the Needle Clamp Thread Guide #XC7020051 ($6.99) is the usual suspect — it's the last guide before the needle, so it sees the most thread friction of any point on the machine.

How Each Part Fails (And What It Looks Like in Your Stitches)

Grooved tension discs

Thread is soft; run miles of it under pressure through the same spot and it cuts a groove into polished steel — the same way it cuts grooves into needle eyes. Once grooved, the discs grip inconsistently: tension reads fine on the dial but varies stitch to stitch. Symptom: intermittent loops on the underside that no dial setting cures. Run a folded strip of muslin between the discs — if you feel a catch, they're grooved.

Fatigued tension spring

Coil springs lose force permanently when compressed for years — especially if the machine is stored with the presser foot down (which keeps the discs clamped). Symptom: you're setting the dial at 7–8 to get what used to happen at 4–5, and the top thread lies loose enough to lift with a fingernail. A $2.99 spring restores the factory range.

Compacted or fuzzed disc felt

Felt collects lint, oil, and thread-finish residue. Compacted felt lets the thread wander to the disc edges; contaminated felt adds sticky, uneven drag. Symptom: tension that changes with thread color or brand (different finishes drag differently on dirty felt), or a thread that periodically jumps out of the discs entirely.

Broken or bent check spring

The most dramatic failure: the fine wire snaps or loses its arc. Slack thread whips on every cycle. Symptom: a rhythmic snapping sound, top thread that shreds or breaks every few inches (also see our thread breaking guide), and visible thread slap above the tension unit at speed.

Longarm Owners: Same Physics, Bigger Consequences

A longarm runs thread through its tension assembly many times faster than a domestic machine, so these parts are true consumables. For Gammill machines we stock the full wear-parts set:

• Gammill Check Springs (4-pack) ($23.99) — replace annually with heavy use; full walkthrough in our check spring replacement guide
• Felt Washers for the Checkspring Assembly (6-pack) ($8.00) — the damping layer that keeps tension from oscillating at speed
• Cone Springs for Intermittent Tension (2-pack) ($6.99) — if your Gammill's tension pulses rather than drifts, start here
• Slip-In Thread Guides (2-pack) ($27.99) — grooved guides masquerade as tension problems on longarms constantly

For the measurement-first approach to longarm tension (instead of chasing the dial), see Longarm Tension Troubleshooting: Stop Chasing, Start Measuring.

Adjustment Problem or Parts Problem? The 3-Question Test

1. Does the dial respond at all? Set it to 0, then 9, and feel the thread drag by hand. No difference between extremes = mechanical failure inside the assembly, full stop.
2. Is the problem consistent or intermittent? Consistently-wrong tension is usually adjustment or threading (start with our tension fix guide). Tension that wanders during a seam is worn parts — discs, felt, or check spring.
3. Did cleaning change anything? Floss between the discs with folded muslin, blow out the assembly, re-test. Improvement that fades within a project means contaminated felt or grooved discs — cleaning can't fix either for long.

Replacing Tension Parts: What to Know Before You Open It Up

• Photograph the disassembly sequence. The disc/washer/spring stack has a specific order and orientation per model — your photos are the reassembly manual.
• Unplug first, presser foot up. Foot up opens the discs, releasing spring pressure so parts don't launch across the room.
• Replace the felt whenever you open the assembly. At $3.95 it's not worth reinstalling a contaminated pad into clean hardware.
• Re-baseline afterward: thread up with quality 50wt cotton, set the dial mid-range, and test on two layers of muslin before judging. New hardware often means your "normal" dial number shifts — that's expected.

All parts above are genuine OEM — find your machine's brand in our parts collection: Brother, Baby Lock, Gammill, Janome, Viking, Singer.
