Sewing Machine Setup & Parts Guide: Everything You Need to Know

Complete Sewing Machine Setup & Parts Guide

If you're new to sewing or just got a new machine, understanding how everything works together is the fastest way to avoid frustration and start sewing confidently.

This guide will walk you through:

• The main parts of a sewing machine

• What each part does

• How to properly set up your machine

• Tips to avoid common beginner mistakes

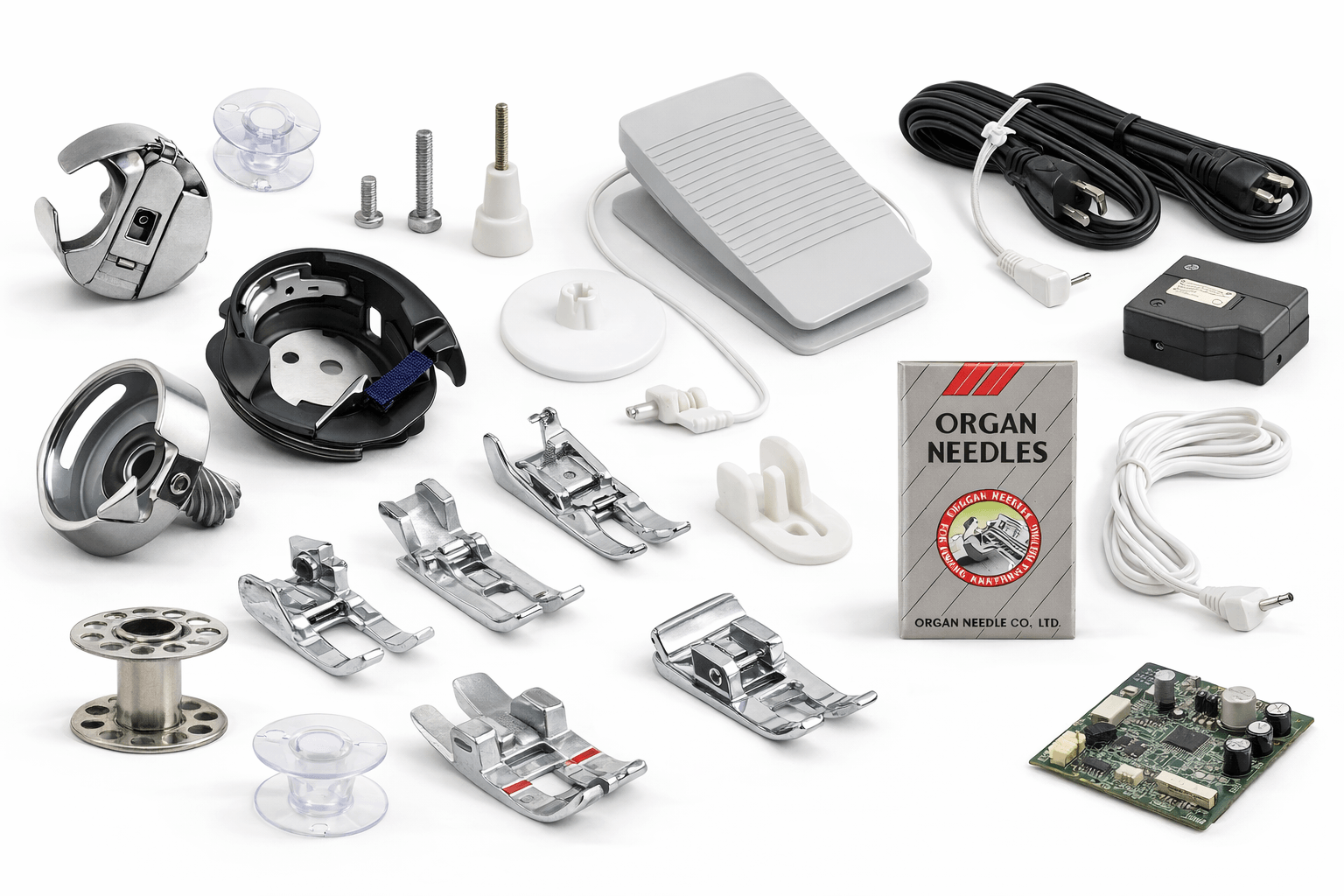

Main Parts of a Sewing Machine

Before setting up your machine, it's important to understand the key components:

1. Spool Pin

Holds the thread spool and feeds thread into the machine.

2. Thread Guide

Directs the thread through the correct path to maintain proper tension.

3. Tension Dial

Controls how tight or loose the thread is while sewing.

👉 Internal link opportunity: Sewing Machine Tension Guide

4. Take-Up Lever

Moves up and down to pull thread through each stitch.

5. Needle & Needle Clamp

The needle carries thread through the fabric to form stitches.

👉 Internal link opportunity: Sewing Machine Needle Sizes Guide

6. Presser Foot

Holds fabric in place while sewing.

👉 Internal link opportunity: Sewing Machine Presser Feet Guide

7. Feed Dogs

Metal teeth that move fabric through the machine evenly.

8. Bobbin & Bobbin Case

Supplies the lower thread that locks stitches together.

👉 Internal link opportunity: Why Your Sewing Machine Isn’t Picking Up Bobbin Thread

9. Handwheel

Manually raises and lowers the needle.

10. Foot Pedal

Controls sewing speed.

How to Set Up a Sewing Machine (Step-by-Step)

Step 1: Wind the Bobbin

• Place thread on the spool pin

• Follow the bobbin winding path

• Wind evenly until full

Step 2: Insert the Bobbin

• Place the bobbin into the case (direction matters)

• Pull thread through the tension slot

• Leave a short tail

Step 3: Thread the Upper Thread

• Follow the machine’s threading path

• Go through tension discs

• Pass through the take-up lever

• Thread the needle front to back

Step 4: Raise the Bobbin Thread

• Hold the top thread

• Turn the handwheel toward you

• Pull up the bobbin thread

Step 5: Check Settings

• Select stitch type (usually straight stitch to start)

• Set proper tension

• Adjust stitch length if needed

Step 6: Test on Scrap Fabric

Always test before starting your actual project.

Common Setup Mistakes to Avoid

❌ Incorrect Threading

Even one missed guide can cause skipped stitches or tension issues.

❌ Bobbin Inserted Wrong Direction

This leads to loose or tangled stitches.

❌ Dull or Incorrect Needle

Wrong needle = bad stitch quality.

❌ Not Lowering the Presser Foot

This completely ruins tension.

How a Sewing Machine Works

A sewing machine creates stitches by interlocking two threads:

• The top thread comes from the needle

• The bobbin thread comes from below

Together, they form a lock stitch, which creates strong, even seams.

Pro Tips for a Perfect Setup

• Always rethread your machine if something feels off

• Use high-quality thread for smoother performance

• Clean lint from the bobbin area regularly

• Replace your needle every 6–8 hours of sewing

• Keep your machine oiled (if required by your model)

Final Thoughts

Getting your sewing machine set up correctly is the foundation of every successful project.

Once you understand the parts and how they work together, sewing becomes faster, easier, and way more enjoyable.

If something goes wrong, it’s almost always:

• Threading

• Needle

• Tension

Master these, and you’re ahead of 90% of beginners.
